Air Brake System Maintenance for Commercial Trucks in South Florida

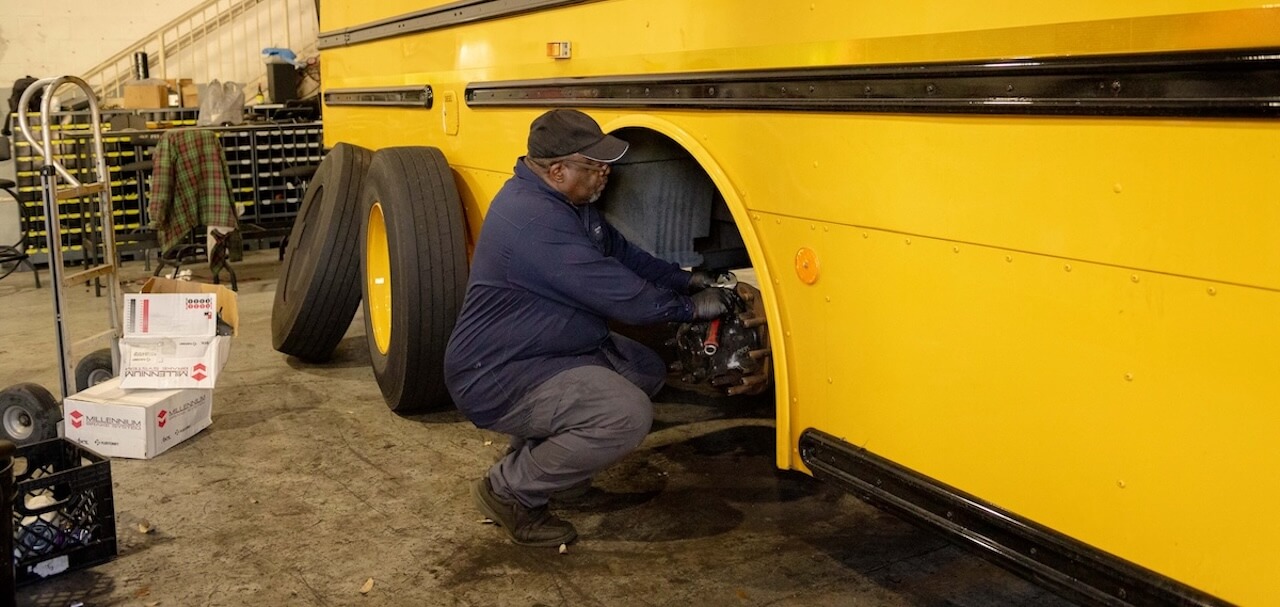

NH Repairs — brake system inspection and repair for Class 6–8 commercial trucks throughout Broward County.

Air brakes are the most safety-critical system on a commercial truck — and one of the most frequently cited sources of out-of-service violations at roadside inspections. In South Florida, the combination of humidity, heat, and the demanding stop-and-go duty cycles common to Broward County routes creates brake system conditions that require more frequent attention than national averages suggest.

For fleet operators and owner-operators in South Florida, understanding what the FMCSA requires, what the CVSA looks for at roadside inspections, and how South Florida's climate specifically affects air brake components is the difference between a truck that passes inspection and one that gets parked on the side of I-95.

LEGAL REQUIREMENT

Under 49 CFR Part 393.40–393.55, all commercial motor vehicles subject to FMCSA jurisdiction must maintain fully functional brake systems. Under 49 CFR Part 396.3, carriers must systematically inspect, repair, and maintain brake systems. Brake violations are among the top causes of out-of-service orders under CVSA inspection criteria.

‍

How Air Brake Systems Work on Class 6–8 Trucks

Air brake systems use compressed air rather than hydraulic fluid to apply braking force. An air compressor driven by the engine builds pressure in wet and dry reservoir tanks. When the driver presses the brake pedal, air is released from the reservoir, travels through valves and brake chambers, and pushes a pushrod that actuates the brake camshaft, spreading the brake shoes against the drum.

Spring brakes — standard on Class 7–8 trucks — work in reverse: they are held off by air pressure and apply automatically if pressure drops below a set threshold (typically 20–45 psi). This is the fail-safe that prevents total brake loss in the event of a catastrophic air loss.

Modern air brake systems also include an air dryer, which removes moisture from compressed air before it enters the reservoirs. In South Florida's humidity, the air dryer is one of the hardest-working components in the brake system and one of the most commonly neglected.

‍

How South Florida Conditions Affect Air Brake Systems

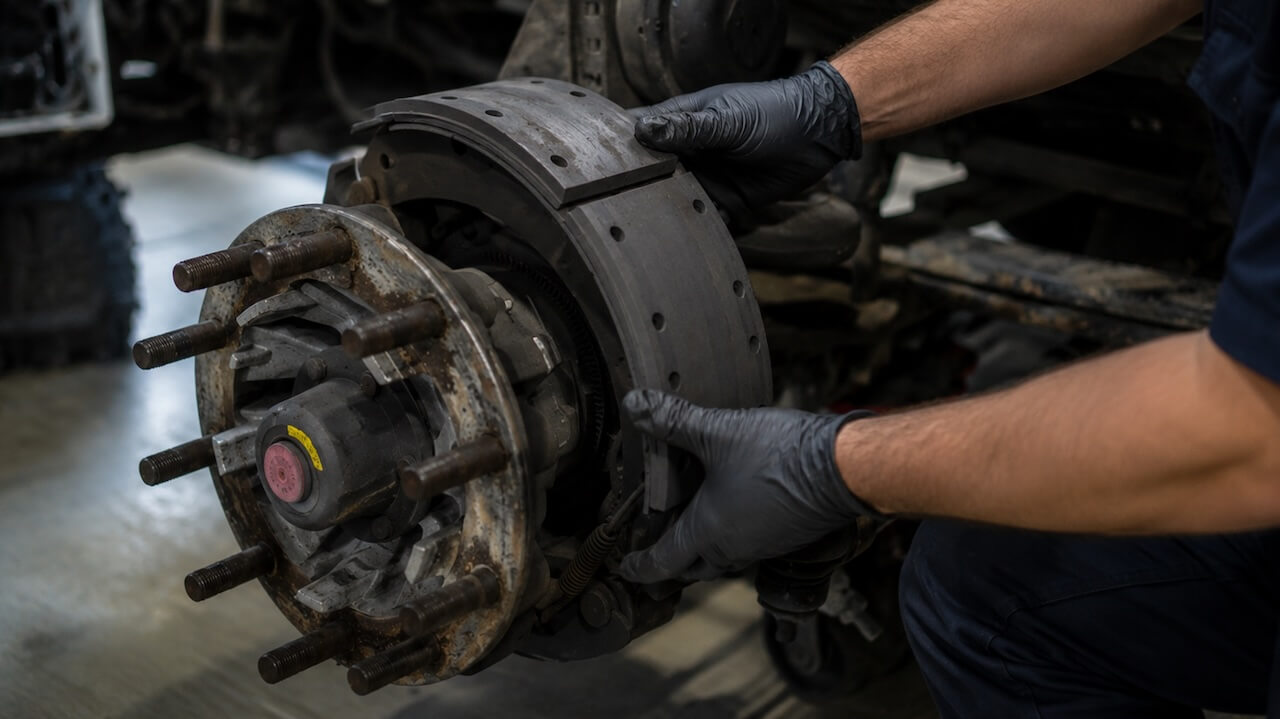

Brake system service at NH Repairs — South Florida humidity and heat create specific failure patterns that require targeted inspection.

Moisture and Air Dryer Failure

South Florida's humidity means compressed air entering the brake system carries significantly more moisture than in drier markets. The air dryer is designed to remove this moisture, but a failing or saturated dryer allows water to pass into the reservoirs and brake valves. Water in the brake system causes valve corrosion, freezing (rare in South Florida but possible during rare cold fronts), and erratic brake application. Checking air dryer desiccant condition and purge cycle operation at every PM service is essential in this climate.

Heat and Brake Fade

Extended stop-and-go operation in South Florida's urban areas — particularly on I-95 corridors, Broward County arterials, and around Port Everglades — generates more heat cycles per route mile than highway driving. Brake fade from overheating is more common on trucks running heavy urban routes here. S-cam brake systems with worn lining have reduced heat dissipation and are more susceptible to fade under South Florida's duty cycles.

Corrosion on Brake Components

Salt air proximity affects trucks operating near Port Everglades and coastal Broward County locations. Corrosion accelerates on brake chamber pushrods, slack adjuster threads, and S-cam components. Trucks stored outdoors in salt-air environments should have corrosion-affected brake components inspected more frequently than the standard PM interval.

‍

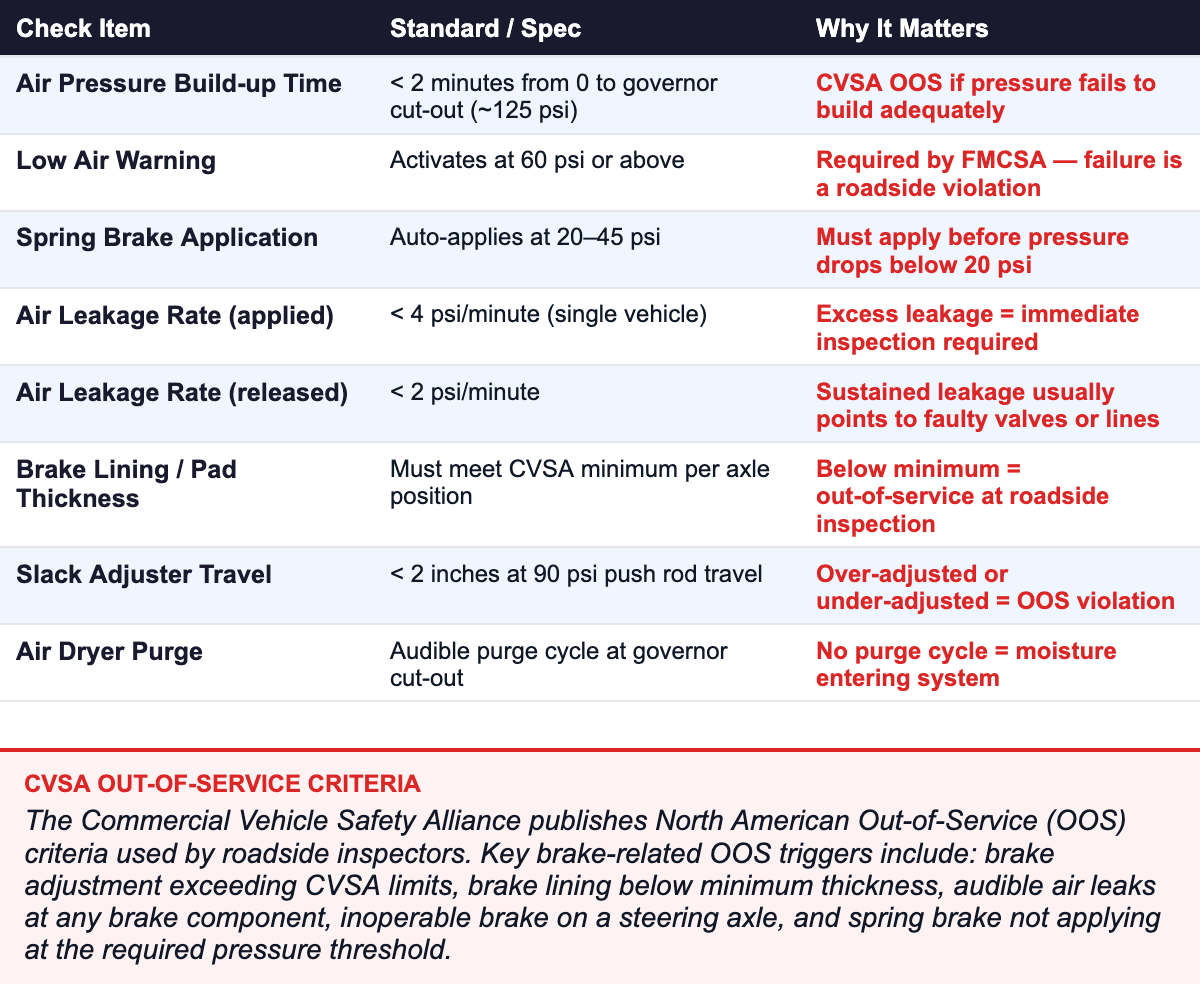

Air Brake System Inspection Checklist

This table covers the key inspection items, the standard or specification that applies, and why each matters from a compliance and safety perspective.

‍

‍

Warning Signs Your Air Brakes Need Attention

‍

1 . Long stopping distance or soft pedal feel

If the truck is taking longer to stop than normal or the pedal feel has changed, brake lining wear, a leak in the system, or a failing relay valve may be the cause. Do not dismiss gradual changes — stopping distance creep is a sign the system is degrading.

‍

2. Air pressure not building within 2 minutes

At idle, air pressure should build from 0 to governor cut-out in under 2 minutes. Slow build-up indicates a compressor that is losing efficiency, a significant leak, or a governor that is not functioning correctly. This is a pre-trip inspection item every driver should check.

‍

3. Audible air leak from brake chambers or lines

Any audible hissing from brake chambers, tubing connections, or valves indicates a leak that needs immediate attention. A small leak that passes a static test today can become an OOS violation tomorrow if it progresses.

‍

4.Brakes pulling to one side

Uneven braking force — truck pulling left or right under braking — indicates a brake out of adjustment on one side, a frozen chamber, or significantly uneven lining wear. This is both a safety issue and a tire wear accelerator.

‍

5. Air dryer not purging or purging excessively‍

A properly functioning air dryer purges audibly when the compressor reaches governor cut-out. No purge cycle means the dryer is not cycling correctly. Excessive or continuous purging means pressure is not being maintained — both conditions warrant inspection.

‍

Air Brake Service at NH Repairs

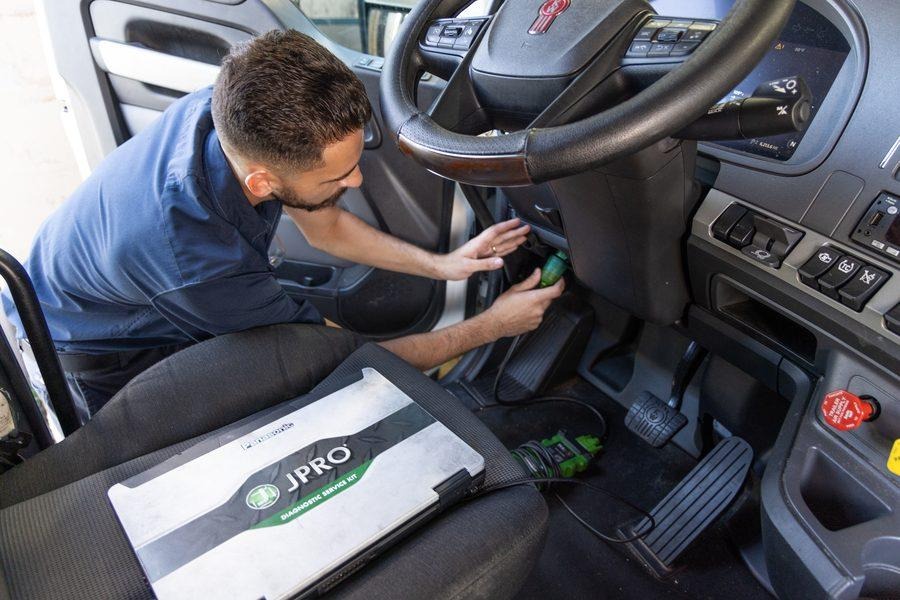

NH Repairs brake system inspection and repair — serving fleet operators throughout Broward County, Miami-Dade, and Palm Beach.

NH Repairs services air brake systems on Class 6–8 commercial trucks at 2221 NW 22nd St, Pompano Beach, FL 33069. Services include brake inspection and adjustment, slack adjuster service, brake chamber replacement, air dryer service, leak diagnosis, and DOT annual inspection preparation with full brake system checks.

If your truck is approaching its DOT inspection or showing any of the warning signs above, call 954-982-6710 to schedule a brake system inspection before a small issue becomes an out-of-service order.

‍
