The selective catalytic reduction system on modern diesel trucks is one of the most fault-prone areas on post-2010 commercial vehicles. When something goes wrong, the truck logs a fault code, regen cycles stop completing, and in many cases the engine enters a derate condition that limits speed or power.

For fleet managers and owner-operators in South Florida, understanding what DEF fault codes actually mean is the difference between a repair that costs $200 and one that costs $2,000. Misdiagnosis on SCR system repairs is common because the fault codes point to a symptom rather than the underlying cause.

This covers the most frequently seen DEF and SCR fault codes on Class 6–8 trucks operating in South Florida, what they indicate, and what actually needs to be diagnosed before ordering parts.

How the DEF and SCR System Works

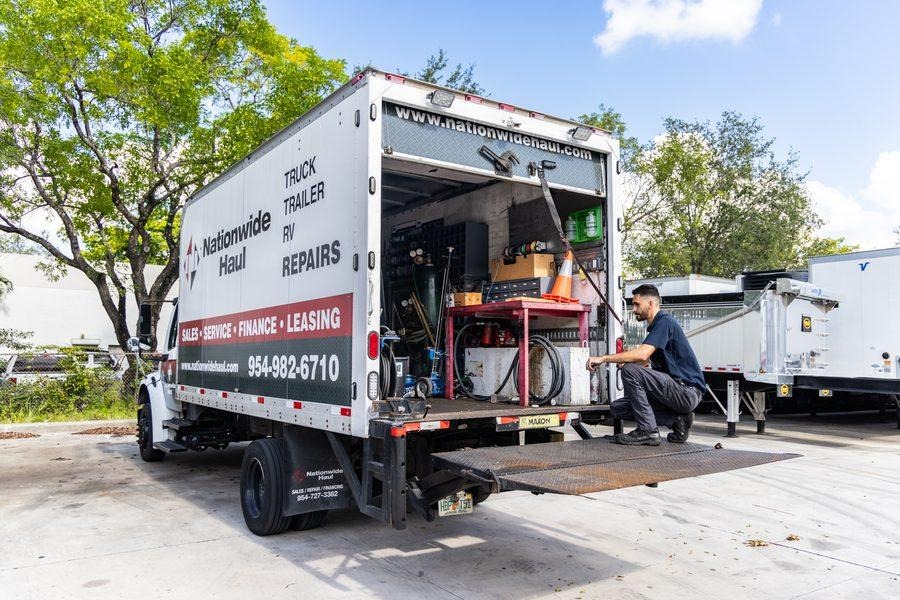

NH Repairs mobile service truck — DEF and SCR diagnostics available in the field across South Florida.

Diesel exhaust fluid is a mixture of urea and deionized water injected into the exhaust stream downstream of the diesel oxidation catalyst. The DEF reacts with exhaust gases in the SCR catalyst to convert nitrogen oxides into nitrogen and water vapor.

The system includes a DEF tank with a quality sensor and level sensor, a DEF pump, a dosing injector, a NOx sensor before and after the SCR catalyst, and the SCR catalyst itself. A failure in any of these components will generate fault codes and can trigger a derate.

SOUTH FLORIDA WARNING

DEF begins to break down above 86°F and can crystallize in dosing lines and injectors when temperatures fluctuate. Trucks sitting in direct sun at job sites in Miami-Dade or parked without shade in Pompano Beach are regularly exposed to conditions that accelerate DEF quality issues.

Common DEF and SCR Fault Codes

Each fault code below includes what the code actually means, what the correct diagnostic approach is, and the cost range depending on root cause.

SPN 4334 / FMI 0 or 1  —  NOx Aftertreatment Outlet Sensor

Indicates the NOx sensor downstream of the SCR catalyst is reading values outside the expected range. Commonly interpreted as a failing NOx sensor — but on many trucks, this code fires because the SCR catalyst itself is contaminated or degraded, not because the sensor is bad.

Diagnosis: Read full fault history and compare inlet vs. outlet NOx values under load before replacing any parts.

Cost Range: Sensor only: $150–$400 | SCR catalyst contamination: $1,500–$4,000

SPN 5246 / FMI 0  —  High NOx Conversion Efficiency

Triggered when NOx conversion rate falls below acceptable thresholds. Frequently associated with DEF quality issues, a failed DEF injector, or an SCR catalyst that is no longer converting efficiently.

Diagnosis: Verify DEF quality with a refractometer before any part replacement. Low-quality or contaminated DEF is one of the most common root causes of this code in Florida.

Cost Range: DEF swap: $30–$80 | DEF injector: $400–$800 | SCR catalyst: $1,500–$4,000

SPN 3031 / FMI 1  —  DEF Level Low

Indicates the DEF tank level is below a threshold. On most platforms, the truck will derate progressively as the tank approaches empty. The fix is adding DEF — but the code should also prompt a check of whether the level sensor is reading accurately.

Diagnosis: Top off DEF first, then check whether the level sensor float is stuck or corroded if the code persists.

Cost Range: DEF refill: $30–$80 | Level sensor replacement: $150–$350

SPN 3364 / FMI 1, 3, or 4  —  DEF Quality Out of Range

Fires when the DEF quality sensor detects fluid outside the acceptable urea concentration range (32.5%). DEF diluted with water, contaminated with diesel, or degraded from heat exposure will trigger this fault.

Diagnosis: Drain the DEF tank completely and refill with fresh DEF from a known-good source first. If the code persists after a full tank swap, the quality sensor may have failed.

Cost Range: DEF drain & refill: $50–$120 | Quality sensor: $200–$450

SPN 4364 / SPN 4375  —  SCR Inducement — Derate Active

Inducement-level faults that place the truck in a derate condition, typically limiting speed to 5 mph. Appear after lower-level DEF or NOx faults have been ignored. Clearing an inducement requires more than resetting fault codes.

Diagnosis: Underlying condition must be resolved AND a parameter reset performed through Detroit Diagnostic Link, Cummins INSITE, or the relevant OEM software. Generic scanners cannot complete this reset.

Cost Range: Depends on root cause + diagnostic reset: $150–$300 labor on top of parts

IMPORTANT

Clearing an SCR inducement requires OEM-level software — Detroit Diagnostic Link for Detroit-powered trucks, Cummins INSITE for Cummins platforms. Shops without the right software cannot complete the reset.

The Most Common Diagnostic Mistake

The most expensive mistake in SCR fault diagnosis is replacing parts based on the fault code number alone. DEF system fault codes point to where the system detected a problem — not necessarily where the problem is.

A downstream NOx sensor fault code can mean: the sensor failed, the catalyst is contaminated, the DEF injector is not dosing correctly, or the DEF quality is out of spec. All four conditions produce the same code. Replacing only the sensor when the catalyst is contaminated means the code comes back immediately after the repair, and the operator is out a sensor cost while the actual problem continues.

CORRECT DIAGNOSTIC PROCESS

A proper DEF system diagnosis reads the full active and historical fault code list, checks DEF quality, verifies dosing injector function, and compares NOx inlet and outlet values under load. That process takes more time than a code scan and parts swap — but it consistently results in a correct first repair.

South Florida Conditions and DEF System Reliability

Florida's heat creates conditions that are harder on DEF systems than cooler markets. Trucks in South Florida should store DEF in shaded locations when possible and should not top off from containers that have been sitting in direct sun for extended periods.

Fleet operators running 10 or more trucks should consider tracking DEF quality issues by vehicle. If the same truck is generating repeated DEF quality or NOx conversion faults, the issue may be specific to that truck's operating pattern, route, or a mechanical problem generating excessive NOx upstream.

Why Bring Your Truck to NH Repairs

The NH Repairs team — walking clients through diagnostics and repair recommendations at our Pompano Beach shop.

NH Repairs diagnoses and repairs DEF and SCR system faults on Class 6–8 trucks at 2221 NW 22nd St, Pompano Beach, FL 33069. The shop uses Detroit Diagnostic Link and Cummins INSITE for fault code diagnostics on Freightliner, International, Kenworth, and Peterbilt platforms. If your truck is in derate or throwing repeated SCR fault codes, call 954-982-6710 to schedule a proper diagnosis before replacing parts.

‍

Frequently Asked Questions

What causes DEF fault codes on trucks in Florida?

The most common causes in South Florida are DEF quality degradation from heat exposure, crystallized DEF in dosing lines or injectors, failed DEF injectors, and SCR catalyst contamination. Sensor failures are also a factor but are less common than the DEF quality and dosing issues.

Can a diesel shop reset SCR inducement, or does it have to go to a dealer?

An independent shop with the correct OEM diagnostic software can clear SCR inducement conditions. Detroit Diagnostic Link is required for Detroit-powered trucks, and Cummins INSITE is required for Cummins platforms. Shops without the right software cannot complete the reset.

How do I know if my DEF is bad?

A refractometer will measure urea concentration in the fluid. Acceptable DEF is 32.5 percent urea. Fluid outside that range by more than a few percent will trigger quality fault codes. DEF that looks yellow or has visible contamination should be drained and replaced regardless of the reading.

What is the derate speed for an SCR inducement?

Derate conditions vary by manufacturer and fault severity. Most inducement derates limit the truck to 5 mph. Lower-level derates may limit power output or top speed to 55 mph before escalating. The specific behavior depends on the engine platform and the fault sequence that triggered the inducement.

How much does DEF system repair cost in South Florida?

DEF injector replacement typically runs $400 to $800 for parts and labor. NOx sensor replacement runs $150 to $400. SCR catalyst replacement is the most expensive item at $1,500 to $4,000 depending on engine platform. A proper diagnosis before repair avoids replacing parts that do not need to be replaced.
